OPW Transport

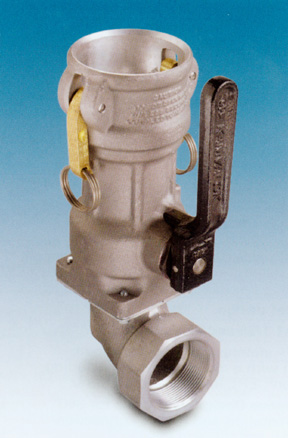

Series Dry Disconnect Couplings are used on multi-compartment petroleum,
solvent and chemical product delivery trucks with an on-board pumping
unit.
|
BENEFITS |
| Spill Protection -
Helps to reduce the hazard potential of spilled liquid during the connection/disconnection
process. Special automatic shut-off design minimizes product loss
in the event of an accidental disconnection. |
| Ease of use -
The built-in elbow/swivel design provides freedom of movement when
used with a hose on tank trucks. |
FEATURES |
- Built-In Elbow/Swivel - provides
freedom of movement when used with a hose on tank trucks.
- Swivel - 2" female NPT.
- Poppeted Adaptor and Coupler
- Closes both ends of process during routine disconnect.
- Built-In Valve - For reliability
of functionality. No additional valves required.
- Quick Disconnect Cam and
Grove Design - provides for smooth, easy connection/disconnection
action.
- 360 degree Orientation
- the coupling can be connected in any orientation onto the
adaptor.
- Automatic Shut-Off Device
- Minimizes product loss in the event of accidental disconnection.
- Lever Actuation - For
easy open/closing.
- Manufactured in compliance
with the highest quality standards of design, material, and
construction.
- Available in Aluminum
Plated Steel internals with Buna-N Seals or Viton®
|
| |
