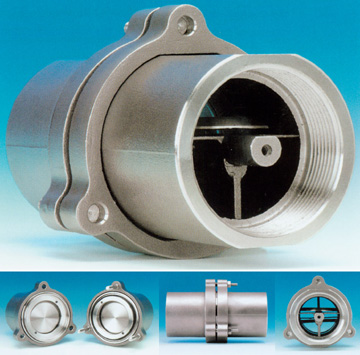

The OPW Engineered Systems Safety Breakaway Coupling is designed specifically to provide protection of equipment and people in the event of a drive-away/pull-away.
Utilizing an innovative double-poppet design, the OPW Safety Breakaway shuts off the flow of liquid in both directions when separated, providing optimum safety during the transfer of hazardous products such as LPG, acids, solvents, petrochemcials, gasses, and other toxic liquids.



BENEFITS

Added Protection of People, Equipment and the Environment - Double-poppet design automatically shuts off both ends of fluid flow when separated, and since it is designed to separate at any angle when subjected to a disignated pull force, the breakaway saves expensive equipment from damage.
Durable and Reusable - Available in a variety of materials, this rugged breakaway can be rebuilt for continued use after a separation.
High Flow Rate - Utilizing a straight-line design, the OPW Safety Breakaway provides miminum flow restriction or pressure drop to deliver the ideal solution for high-flow applications.


FEATURES

Available in 316L Stainless Steel, Alloy 20® and Hastelloy® C.
Choice of End Connections - NPT, BSP, ASME, Flange and Butt Weld.
Order to Specification - Designed to absorb normal line shock from external overload, shear bolts can be supplied in a variety of sizes and materials to meet specific pressure and load requirements.
Rebuild Kits Available - Coupling can be rebuilt, reset and returned to operation.

For more information about GT Safety Breakaway, click on the literature graphic to the left to open a PDF file that can be viewed in Adobe Acrobat Reader
