| Comparison
with Silicone Rubber Hose • Hygienic Clean Ability - much better, due to highly polished inner surface finish. • Chemical Resistance - considerable improved, particularly to strong oxidizing acids and bases. • Temperature & Pressure Ratings - much higher temperature and pressure capability. • Steam Resistance - permanently resistant to steam sterilizing (unlike silicone hose, which has a limited life). |
Comparison

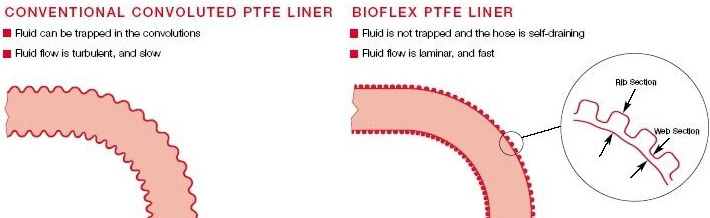

with Convoluted PTFE Hose • Hygienic Clean Ability - vastly improved, due to smooth bore and hygienically polished inner surface. • Flow Rates - more than 100% higher. • Pressure Rates - more than 50% higher. • Gas Permeation Resistance - more than 150% higher. • Flex Life at Temperature and Pressure - more than 50 times the life, dependent upon conditions. |
| Specifications: | |||
Tubing |
Smooth Inner Bore System | ||
Material of Construction |
PTFE lined hose | ||
Pump
Tubing/Pump Life (hrs) |
No - N/A | ||
Size Range ID
(in.) |
0.375" up to 2" | ||
Maximum
Operating Temp. |
200°F (93°C) - PDCF 275°F (135°C) | ||
USP Class VI
Approval |
Yes | ||
Hose
Design Options |
Natural or anti-static PTFE, stainless steel braid, with or without an EPDM or silicone rubber cover, or polypropylene, PVDF or hastelloy braid. | ||
End
Fitting Options
|
ASA150 or DIN flanges, Sanitary Triclamps (Triclovers), Camlocks, DIN11851, RJT, RJP and SMS fittings, BSPT or NPT fixed males, BSP or NPSM females, JIC, I-Line and may other standard and special fitting designs. | ||
For
more information about BioFlex just click on the graphic to the
right to open an Adobe Acrobate PDF file. |
 |
||
