Hose types, Designs & Approvals

Pharmaline GP has a PTFE hose liner tube, manufactured from PTFE material in accordance with FDA requirement 12 CFR177.1550

An anti-static PTFE option is also available, Pharmaline AS, using liner material in accordance with the FDA requirement 21 CFR178.3297

Both Pharmaline GP and Pharmaline AS have been tested and the PTFE liners comply with USP Class VI, including the Elution (Cytotoxicity) test.

Both include grade 304 SS wire braid and a platinum cured white silicone rubber cover (post-cured 4 hours at 200
°C in accordance with requirements for USP Class VI). The silicone rubber material is in accordance with FDA requirement CFR-177-2600.

ATEX - Attestations of Conformity and Labeling are available for the Pharmaline range of hose and hose assemblies.

Advantages over Conventional Hose

  • Pharmaline can be used to replace silicone rubber hoses, particularly where the much better chemical resistance and ease of cleaning of PTFE hose liner is an advantage.
  • Unlike silicone rubber lied hoses, Pharmaline can be steam sterilized any number of times, without degradation of the hose liner.
  • Pharmaline can used to replace conventional smoothbore PTFE lined hoses in applications where the much better flexibility of Pharmaline is an advantage.
  • Pharmaline is smaller in O/D and lighter in weight tan its nearest rival product because the construction does not include any glass fibre filler layers. The PTFE weight per unit length, however is higher.

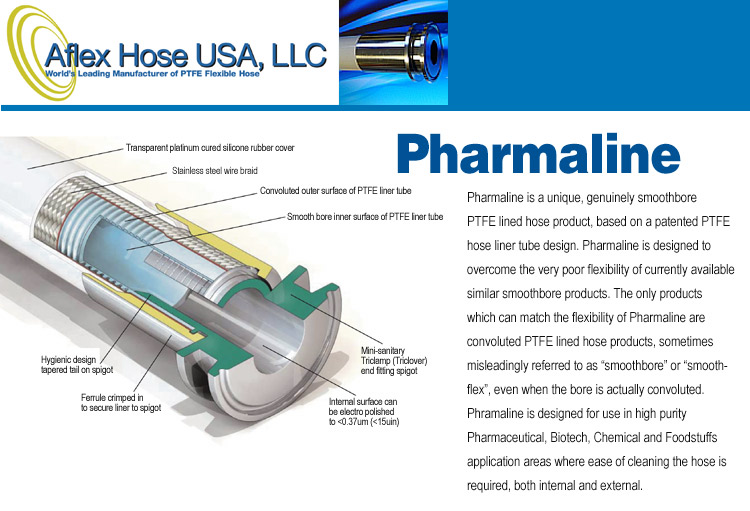

  Smooth Inner Bore System
Material of Construction
  PTFE lined hose
Size Range ID (in.)
  0.250" up to 2 "
Maximum Operating Temp.
  -80°F (-60°C) to - +400°F (+200°C)
Pressure vs Temperature
  Pressure ratings are as listed up to 266°F (130°C), then reducing at 1% per 1.8°F (1°C) up to 400°F (200°C).
USP Class VI Approval
Hose Design Options
  Natural or anti-static PTFE, stainless steel braid, with a platinum cured silicone rubber cover.
End Fitting Options
  Sanitary and Mini Sanitary Triclamp (Triclover) fittings in 316SS, with bores electro polished to <15u in ( <0.375um).
I-Line fittings
Compression fittings
BSPT and NPT fixed male pipe fittings
Flanges, Camlocks, DIN 11851, RJT, SMS, RJP and others to special order
Relink End Fittings
  "Relink" Self Assembly, re-usable end fittings are also available for end fitting types. These can be assembled and disassembled by the customer, and are to a Patented Design. The purchase of a Relink Manual or Hydraulic Press is required. Available for use with hose up to 1".
For more information
about Pharmaline
just click on the graphic
to the right to open an
Adobe Acrobat PDF file.
