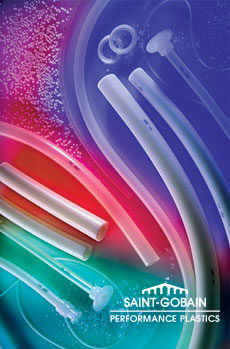

C-Flex® Tubing |
C-Flex® is a
unique, patented thermoplastic elastomer specifically designed
to meet the critical demands of the medical, pharmaceutical,
research, biotech and diagnostics industries.
C-Flex® biopharmaceutical tubing
has been used by many of the world's leading biotech and pharmaceutical
processing companies for over 20 years. Each coil of C-Flex® tubing
is extruded to precise ID, OD and wall dimensions in an FDA-registered
medical device facility in accordance with the regulations concerning
this registration. All Tubing is formulated to meet the standards
of the biopharmaceutical industry and is QA tested before leaving
our production facility. |
|
|
|
Features
/ Benefits:
• Complies with USP 24/NF19, Class VI, FDA and USDA standards
• Manufactured under strict GMPs
• Non-pyrogenic, non-cytotoxic, not-hemolytic
• Chemically resistant to concentrated acids and alkalis
• Significantly less permeable than silicone
• Low platelet adhesion and protein binding
• Ultra-smooth inner bore
• Superior to PVC for many applications, with significantly fewer TOC extractables
• Longer peristaltic pump life
• Heat-sealable, bondable and formable
• Steamable for low TOCs and extractables
• Remains flexible from -50°F to 275°F
• Sterilizable by radiation, EtO, autoclave or chemicals
• Available in animal-free (ADCF), clear and opaque formulations
• Low traceable
• Safer
disposal through incineration
Typical
Applications:
• Cell culture media and fermentation
• Diagnostic equipment
• Pharmaceutical, vaccine and botanical product production
• Pinch valves
• High-purity water
• Reagent
dispensing
• Medical
fluid / drug delivery
• Dialysis
and cardiac bypass
• Peristaltic
pump segments
• Sterile
filling and dispensing systems
|
|
Specifications: |
|
|
Hose/Tubing |
|
Tubing |
Material of Construction |
|
Thermoplastic elastomer |
Pump
Tubing/Pump Life (hrs) |
|
No - N/A |
Size Range ID
(in.) |
|
.125 & 1.000 |
Maximum Operating
Temp. |
|
275°F (135°C) |
Color |
|
Clear or Opaque |
General
Product Features |
|
Chemical resistant,
ultra smooth inner bore |
Typical
Applications |
|
Pharmaceutical processing, sterile
filling and dispensing |
Durometer |
|
60 |
Autoclave Sterilization |
|
Yes |
Gamma
Sterilization |
|
Yes |
EtO Sterilization |
|
Yes |
Molded Version |
|
No |
Sterile
Weldable & Sealable |
|
No |
USP Class VI
Approval |
|
Yes |
Validation Guide |
|
Yes |
© Copyright
Caribe Gasket & Supply, 2009. All Rights Reserved |
Drug Master File |
|
Yes |
|
|
|
