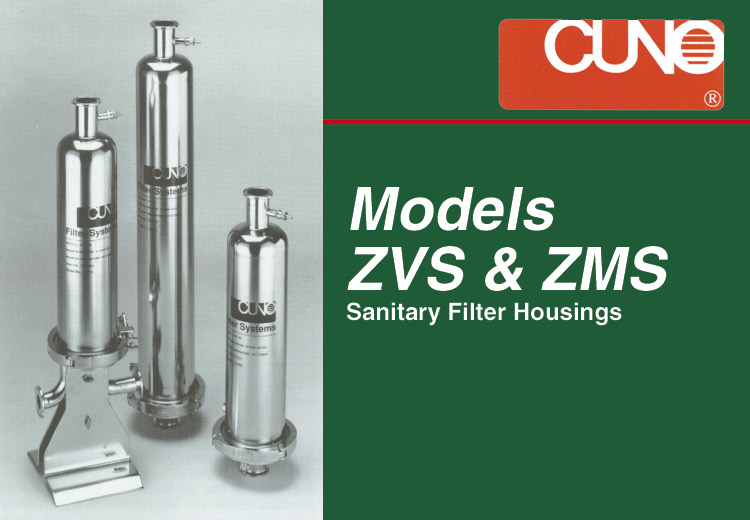

Models ZVS and ZMS Sanitary Filter Housings
Cuno® sanitary style ZVS and ZMS filter housings are designed for critical clarification and sterile filtration applications.
Manufactured to the strictest of quality standards and rom the highest quality materials, the ZVS and ZMS filter housings meet the exacting requirements of the pharmaceutical, biotechnology, food & beverage and microelectronics industries. ZVS and ZMS filter housings are designed for liquid or gas service and can easily be cleaned-in-place (CIP), steamed-in-place (SIP), or hot water sanitized. The 316L stainless steel in-line ZVS series and T-line ZMS series accept one Cuno® 70002 style filter element. The inlet and outlet connections are inch quick connect sanitary fittings. an optional mounting stand for the ZMS filter housing is available.
ZVS and ZMS housings offer the highest quality electropolished surface finish for ease of cleaning. Wetted surfaces are further electro polished to a 20 microinch Ra surface finish to limit bacterial and particulate adhesion.
  • 316L stainless steel construction
  • High quality surface finish (20 microinch Ra internal)
  • Housings accommodate one 10", 20", 30" or 40" filter cartridge
  • Accepts Cuno® 70002 sanitary style double o-ring bayonet lock cartridge
  • Sanitary design vent and drain valves
  • CIP and SIP design
  • Designed to minimize product holdup volume
  • Maximum corrosion resistance ensures long term service
  • Minimum bacterial/particulate adhesion
  • Suitable for small to intermediate product batches and tank vent applications
  • Cartridge locks into place assuring secure installation even under back pressure conditions
  • Easy to clean, no cross contamination, no threaded parts in contact with process fluids
  • Permits easy cleaning, sterilization or sanitization in place
  • Enable maximum recovery of product
Click on the link below to open a PDF
Models ZVS and ZMS
