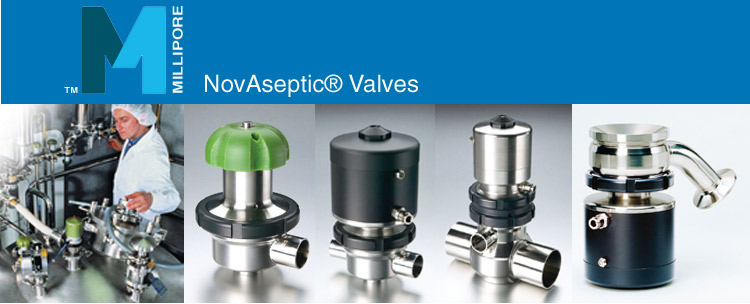

NovAseptic® Valves - Innovatively Designed Aseptic Components

NovAseptic® Valves are e engineered for optimal performance, reliability, durability and ease of maintenance. The design and development or each component is based on more than 20 years' experience, focused on aseptic design. NovAseptic Valves comply with cGMP Design Qualification criteria for aseptic processing. This is why we choose to call it "Aseptic by Design".

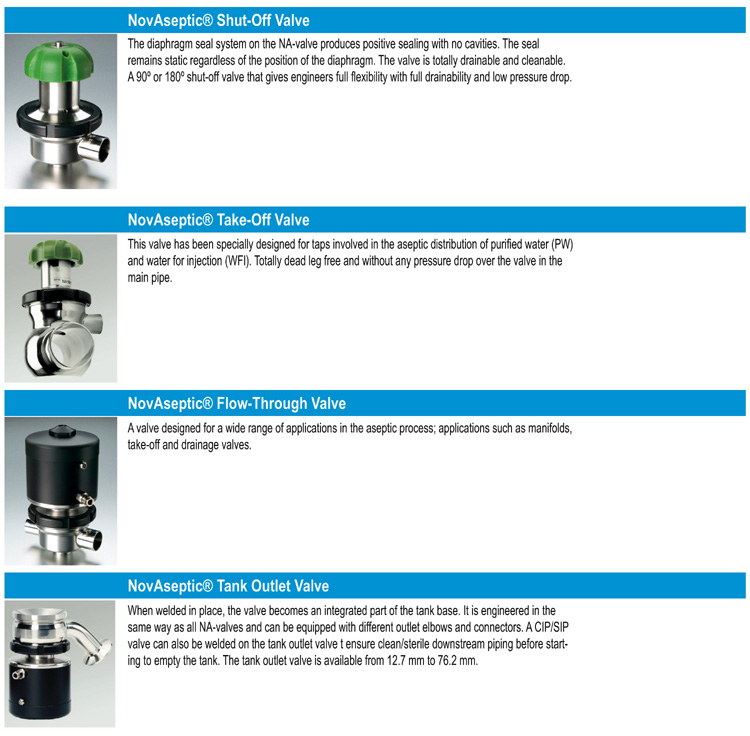

Process Valves
NovAseptic® Valves are specifically designed for aseptic applications and comply with the most stringent cleanability and sterilizability requirements. The focus on aseptic design is a significant feature for all valves. Take off valves are often the ultimate choice when it is necessary to integrate taps designed for aseptic distribution systems for purified water (PW) and water for injection (WFI).
Tank Outlet Valves
NovAseptic® Tank Outlet Valves are particularly designed to comply with the most rigorous requirements in applications in which CIP/SIP is crucial. Their integration in aseptic processing equipment ensures that this important part of the system can be easily sterilized and cleaned in place.
Actuators and Diaphragms
Chose from a wide range of diaphragms and the following actuators for your applications
  • Pneumatic Actuators
    • Spring Closed/Open
    • Multiple Acting
  • Manual Actuators
    • Standard
    • Angled Extended Axis

FEATURES

QUALITY CONTROL BENEFITS

The main features of NovAseptic® Valves that give them their fine reputation include:
  • CIP/SIP - Compatible
  • No dead leg - No risk of contamination
  • Low product hold-up - Saves money
  • Totally drainable - Excellent aseptic performance
  • Engineering flexibility
  • Uniform and high quality
  • 3.1 certificate available on all wetted parts
  • Smooth inner surface - Easy cleaning
  • Documentation for easy validation
  • Diaphragm in compliance with FDA regulations and USP Class VI tested.
Cost Effective, Custom Designed Solutions
The different valves and valve combinations in sizes from 12 to 76 mm offered by Millipore provide a wide range of solutions to engineering challenges. Solutions that give you full flexibility. Aseptic valves and combinations that provide a process with no dead legs and full CIP/SIP. The aseptic design makes the process easier to validate, with diaphragm materials such as Viton® elastomer, EPDM, silicone and PTFE. These fulfill FDA criteria and are USP Class VI tested. With our know-how in the application of automated processes, we can help you choose the best aseptic solutions for your applications.
Production and Quality Control
Starting from Zero - The different market requirements for material quality standards according to ASME®, ASTM® and various European specifications are already taken into account when the stainless steel is ordered from the steelworks.
The material is cut from the original bar into work-pieces before used to produce valve bodies. The heat number from the original bar is transferred directly to the valve body or recorded with the batch numbers that are engraved on the valve body. This provides full traceability back to the mill certificate for each single unit.
Computerized, Uniform Handling - The bodies are turned in computer-programmed turning lathes to their final shape and the pipes are welded using semi-automatic TIG welding on the outside. This operation guarantees uniform handling and an outstanding result. The valve part is polished manually and, if required, electro-polished according to your requirements to a surface finish or Ra <0.5 um, or better.
The Millipore quality control program for the valve body is extensive and ensures that only high-quality products are shipped to our customers
