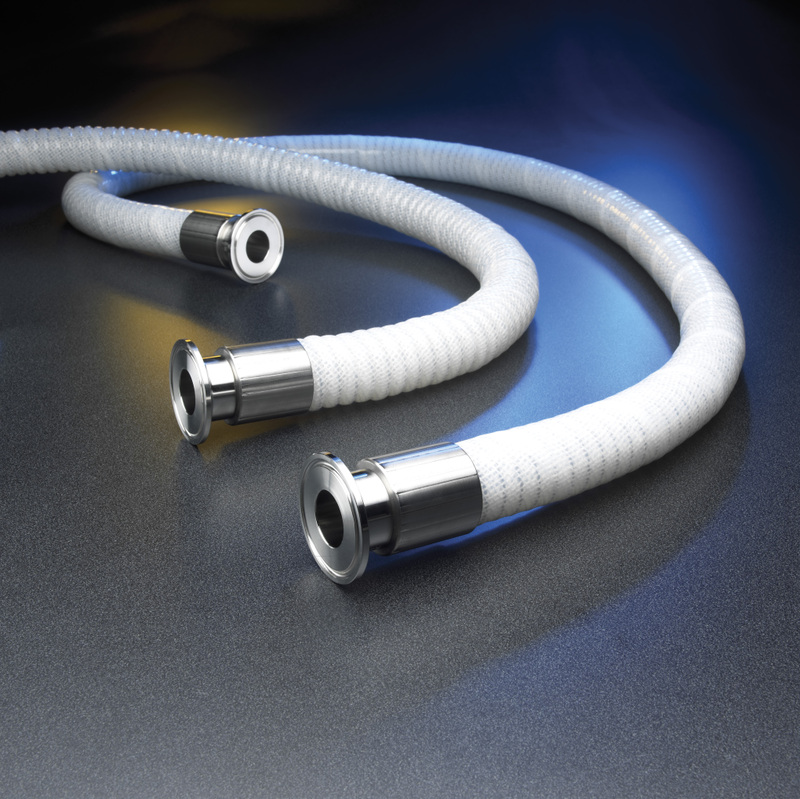

Sani-Tech® STHT®-W and STHT®-W-CO

Sani-Tech® STHT®-W and STHT®-W-CO (convoluted outer cover) platinum-cured silicone wire-reinforced hose is wrapped with multiply reinforcements and 316SS helical wire. this product is extruded with a high-purity biopharmaceutical grade silicone-tubing inner diameter to ensure product integrity. It is designed for vacuum and tight bend radius applications.

Features / Benefits:
• Biopharmaceutical-grade hose
• Excellent bend radius
• Unsurpassed surface smoothness
• Autoclavable and sterilizable
• Temperature range from -80°F (-62°C) to 500°F (260°C)
• Imparts no taste or orders
• Custom color coding available
• Available in 12 ft. lengths
• Meets USP Class VI, EP 3.1.9, and FDA criteria
Typical Applications:
• Pharmaceutical processing
• Biothechnology
• Vacuum pump applications
• Bulk transfer
• Load cell



Specifications:
Hose/Tubing
   Hose
Material of Construction
  Platinum-cured silicone
Pump Tubing/Pump Life (hrs)
  No - N/A
Size Range ID (in.)
  0.500 - 4.000
Maximum Operating Temp.
  500°F (260°C)
Color
   Translucent
General Product Features
  Wire reinforced, withstands full vacuum, high pressure
Typical Applications
   Vacuum pump, biotechnology, load cell
Durometer
   65
Autoclave Sterilization
  Yes
Gamma Sterilization
  Yes
EtO Sterilization
  Yes
Molded Version
   No
Sterile Weldable & Sealable
  No
USP Class VI Approval
  Yes
Validation Guide
  Yes
© Copyright Caribe Gasket & Supply, 2009. All Rights Reserved
Drug Master File
   Yes
