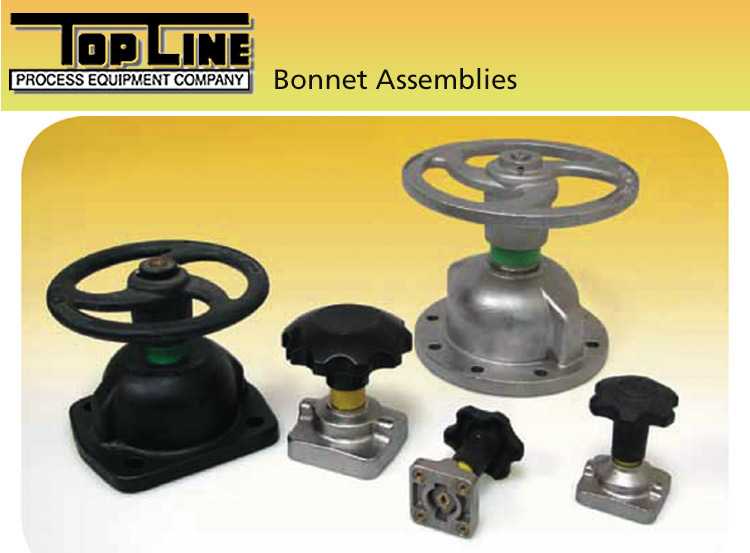

The Top-Flo® manual
bonnet incorporates a simple mechanism to adjust diaphragm squeeze
which greatly enhances diaphragm life span. The adjustable close
stop incorporates a sliding shaft/set screw design for ease of setting
with only simple tools needed. No hand wheel removal or additional
caps or gears to set or reinstall. for applications where contamination
is of concern, "09" stainless bonnets are dual Viton® 0-ring sealed as standard. Viton® o-ring
seals in the hand wheel and stem areas prevent contamination from
entering through or exiting from the bonnet in case of diaphragm
failure and prevent wash down fluid ingress. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
All bolts used with
the style bonnet are fully encapsulated when installed without the use
of additional plastic caps or plugs to eliminate external entrapment areas.
When Top-Flo® new style bonnets are used on block style valves,
acorn nuts compliment the fasteners to ensure no exposure to bolt threads.
|
|
|
|
|
|
|
|
|
|
|
|
|
Click
on the literature graphic above to open a PDF file that can be viewed in
Adobe Acrobat Reader. |
|
|
Top-Flo® manual
bonnets enjoy a full complimentary range of options including but not
limited to limit or proximity switches for position indication, pad-lockable
hand wheel, mechanically polished exterior, stem extensions, and adjustable
open stops. |
|
|
|
|
|
|
Top-Flo® manual
bonnets offer many features that have been carefully designed with
the user in mind. The new bonnet design takes into account environmental
stresses such as clean ability, reliability, autoclave use. adjustment,
and ease of maintenance. |
|
|
|
|
|
|
|
|
|
|
